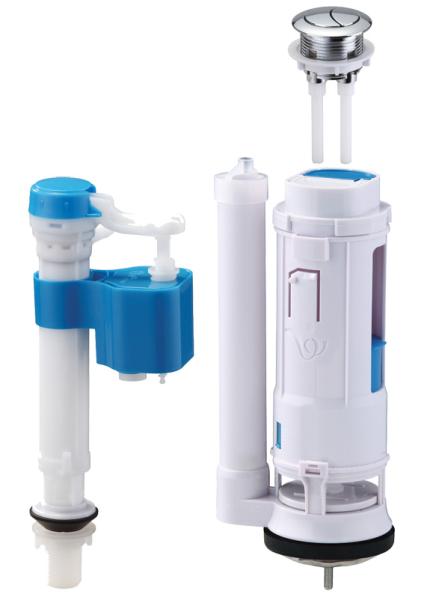

This complete set include our fill valve IV101, flush valve OV203B and push button PB204, is suitable for 1 PC toilet tank.

IV101:

• Height adjustable from 7.5” to 9.5”, customized height to meet requirement exactly
• special buckle designed for easy height adjustment of the fill valve, safely and reliable, clip in special design to fix the height of fill valve
• easy adjustment to achieve ideal water level, wide adjustable range of water level
• wider adjustable range, more suitable for low toilet, adjustable valve height and water level to ensure proper fit and most efficient flush volume
• Tool free adjustment rod.
• Inlet: G1/2”, G3/8”, G15/16” , available models with different inlet sizes and materials, brass screw connector, plastic screw connector
• anti-corrosion POM for longer endurance,
• The two floats can shut off the water flow instantly, float covered by designed housing to avoid interference. Close instantaneously.
• Back pressure design for quicker close, silent filling and stronger pressure endurance. Silent anti-siphon design for speedy shut off and stable performance. Membrane design.
• Water float adjustment, easy to adjust the water level. Float can be adjusted between 0-45mm. Water level can be adjusted by moving the float up and down.
• The anti-impurity design is suitable for impure water area, easy clean inside filter to guard the valve from impurity. Special design, insensitive to impurity water. easy for cleanness and replacement. Effective to filtrate the dirt water and easy to clean. Easy clean filter inside.
• Anti-siphon design prevents contamination of fresh water supply, prevent water back flow.
• Compact design, suitable for different tanks. Low inlet noise.
• Working pressure: 0.015Mpa~2.0Mpa; water level remains the same even if water pressure is varied.
• Filling speed: 4.8L/Min; 0~30% re-fill rate with adjustable rectifier.
• Mounting type: screw lock;
• Certificate: CE, WRAS, CQC, ISO9001
• Trade Mark: VGA
• Packing: 1 PC/PE bag, 36PCS/CTN
• HS code: 3926909090

OV203B:

• Installation height: 180MM,
• outlet: 2”
• flush volume: adjustable
• Height of over flow pipe: customizable.
• The compact structure occupies less tank space
• Compatible design to comply with most of tanks
• Dual flush to save water, easy flush volume adjustment
• Anti-leak silicone ring for stronger sealing capability
• High base available in different height
• Easy to install, flush body and base can be assembled and disassembled easily by turning the flush body to the position.
• Adjustment of flush volume by moving up and down the scale
• Insensitive against dirt, long life time.
• Soft touch dual flush valve
• The height of flush valve can be optional, suitable for different height of tank which from 270mm to 430mm
• Residual water can be adjusted.
• For 1 PC toilet
• Certificate: CE, WRAS, CQC, ISO9001,SGS

PB204

• Dual push with half flush and full flush
• Diameter: 38MM
• Chrome plated finishing for elegant design
• excellent decorative effect
• anti scratching
• long serive time up to 200,000 times guarantee
• Length of rod adjustable
